Wood chipper downtime is expensive. Learn how to extend chipper blade life through proper material choice, sharpening, inspection, and replacement timing — based on real field practice.
For tree care contractors and biomass operators, every hour a wood chipper sits idle costs money. Fuel burned during restart, missed job schedules, and emergency blade orders all add up. The blade — that thin slab of tool steel doing all the cutting work — is the single most common source of unplanned downtime. Yet with the right material, the right sharpening discipline, and the right inspection routine, most operators can extend blade life by 30% to 60% without spending more on consumables. This guide breaks down how.
Why Chipper Blades Wear Out Faster Than They Should
Most premature blade failures aren’t caused by the blade itself — they’re caused by upstream factors the operator can control. The four most common culprits:
- Hidden contamination — nails, fence wire, gravel, and embedded stones in feedstock cause micro-chipping and impact fatigue. A single nail can ruin an edge in seconds.
- Wrong steel for the job — using a high-hardness steel like D2 on dirty urban tree work leads to chipping; using a softer 4340 on clean hardwood leads to fast edge rounding.
- Late sharpening — operators often run blades until cutting performance visibly drops. By that point the edge has already lost geometry, requiring more material to be ground off during sharpening, shortening total service life.
- Poor anvil clearance — a worn or misadjusted anvil forces the blade to do more work than designed, accelerating wear on every chipping cycle.
Choosing the Right Steel — The Single Biggest Lifespan Decision
Blade material determines 60–70% of total service life, more than any other single factor. Here’s how the three main grades compare in real chipping conditions:
| Steel Grade | Hardness (HRC) | Best For | Typical Edge Life |
|---|---|---|---|
| A8 Modified | 53–57 | Mixed urban tree work, occasional contamination | 40–80 hrs |
| D2 | 58–62 | Clean hardwood, biomass plants | 60–120 hrs |
| H13 | 50–54 | High-impact, high-temperature applications | 30–60 hrs |
| 4340 alloy | 48–52 | Soft wood, low-budget operations | 20–40 hrs |
Field rule of thumb: if your feedstock contains visible debris (urban storm cleanup, demolition wood), choose A8 Modified — its toughness absorbs impact without chipping. If your feedstock is clean and consistent (sawmill offcuts, sorted biomass), D2 offers the longest edge life.
Choosing wrong here is irreversible — no maintenance routine can compensate for a steel that’s mismatched to the job.
Sharpening Discipline — The 3-Hour Rule
The biggest mistake operators make: waiting until a blade is “obviously dull” before sharpening. By that stage, the edge has already deformed, and grinding it back to spec removes far more material than necessary.
The 3-hour rule: for production chipping (4+ hours per day), inspect blade edge after every 3 operating hours. Sharpen at the first sign of:
- Visible reflection from the cutting edge (a sharp edge reflects no light)
- Increased fuel consumption per cubic meter chipped
- Larger chip size or stringy output
- Audible change in cutting pitch
Sharpening early — removing only 0.1–0.3mm per pass — can give a single blade 5 to 8 sharpening cycles before it’s below minimum spec. Sharpening late typically yields only 2 to 3 cycles. The math is straightforward: same blade, double the service life.
Inspection Routine — What to Check, and How Often
Daily 5-minute checks pay back massively in avoided downtime:

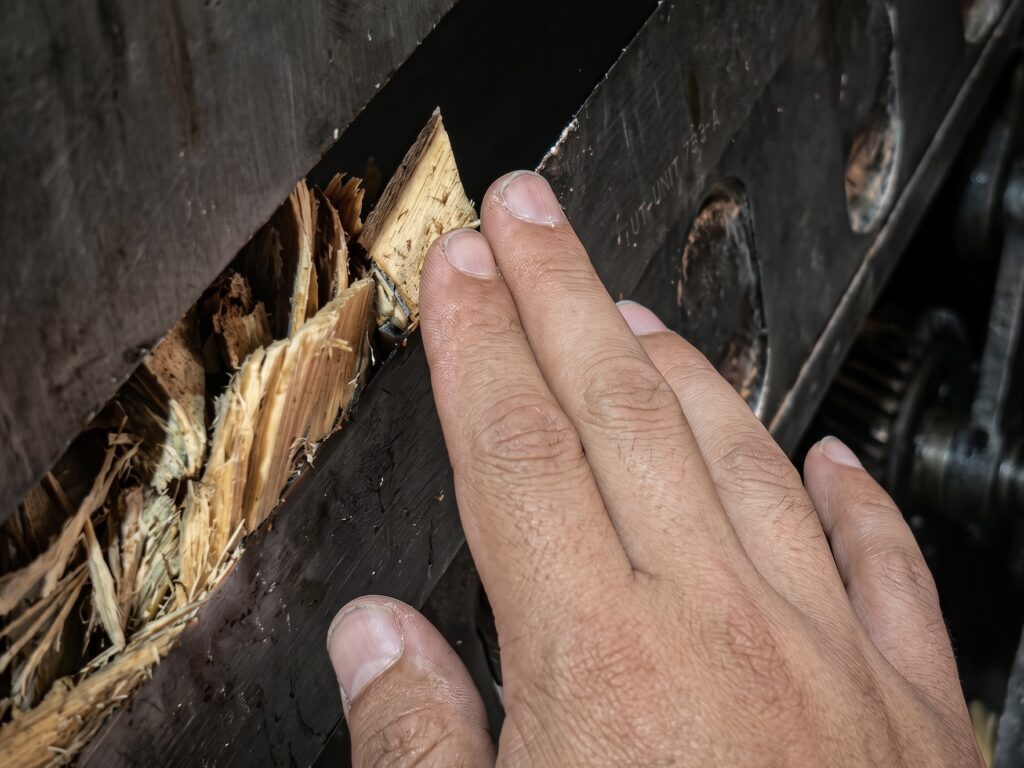

- Edge condition — run a fingernail across the edge (carefully). Smooth = sharp. Catches = chipped.
- Bolt torque — loose bolts cause vibration that fractures blades. Re-torque to manufacturer spec daily.
- Anvil gap — most chippers spec 0.5–1.5mm. A feeler gauge takes 30 seconds.
- Rotor balance — visible vibration means an unbalanced rotor or unevenly worn blade set. Address immediately.
Weekly: pull each blade, inspect for hairline cracks (use dye penetrant if needed), measure remaining edge thickness against minimum spec.
Monthly: ultrasonic flaw detection on any blade with more than 200 hours of service. Most blade failures are preceded by internal cracks invisible to the naked eye.
When to Replace, Not Just Sharpen
A blade has reached end-of-life when any of these conditions are met:
- Edge thickness below manufacturer minimum (typically 60–70% of original)
- Visible cracks of any size
- Repeated chipping after sharpening
- Total bevel angle drift greater than 2°
Running a blade beyond these limits creates real risk: catastrophic failure during operation can damage the rotor (a $5,000–$15,000 repair) and create serious injury risk to operators. The cost of one new blade is always less than the cost of one rotor incident.
How OEM-Grade Replacement Blades Affect Total Cost
Many operators default to whatever blade their dealer stocks, without comparing material specs. The real cost comparison isn’t unit price — it’s cost per operating hour:
| Blade Type | Unit Cost | Avg Service Life | Cost per Hour |
|---|---|---|---|
| Generic aftermarket (4340) | $35 | 30 hrs | $1.17/hr |
| Mid-grade (A8 Modified) | $65 | 70 hrs | $0.93/hr |
| OEM-grade (D2, factory-direct) | $55 | 100 hrs | $0.55/hr |
A factory-direct OEM-grade blade made from properly heat-treated D2 tool steel typically costs less per operating hour than a cheap generic — because it lasts 3x longer and requires fewer changeouts.
FAQ:
How many hours does a wood chipper blade typically last? Service life varies widely by steel grade and feedstock. A8 Modified blades typically last 40–80 hours in mixed urban work. D2 blades on clean biomass can reach 100–120 hours. Operators reporting under 30 hours are usually running mismatched steel or sharpening too late.
Can I sharpen chipper blades myself? Sharpening requires precise bevel angle control (typically 30° or 35° depending on machine) and consistent material removal. Most operators send blades to professional sharpening services. DIY sharpening is feasible with a dedicated blade grinder but rarely matches factory geometry.
How do I know when to replace versus sharpen? Sharpen when the edge is dull but blade thickness is still within spec. Replace when edge thickness drops below manufacturer minimum, when cracks appear, or when sharpening no longer holds an edge for the expected service hours.
Does blade brand matter, or is OEM equivalent enough? What matters is the underlying steel grade, heat treatment, and dimensional accuracy. A factory-direct blade made from verified A8 or D2 tool steel and tested for hardness and flatness performs identically to an OEM blade — and costs significantly less.
At Xiaote Blades, we manufacture replacement chipper blades from A8 Modified, D2, and H13 tool steel, with full documentation of material certification, hardness testing, and dimensional inspection. Whether you need OEM replacements for Bandit, Vermeer, or Morbark machines — or fully custom blades to your drawing — we ship factory-direct from China, with samples available in 7–14 days.
Get a Custom Quote →
English
